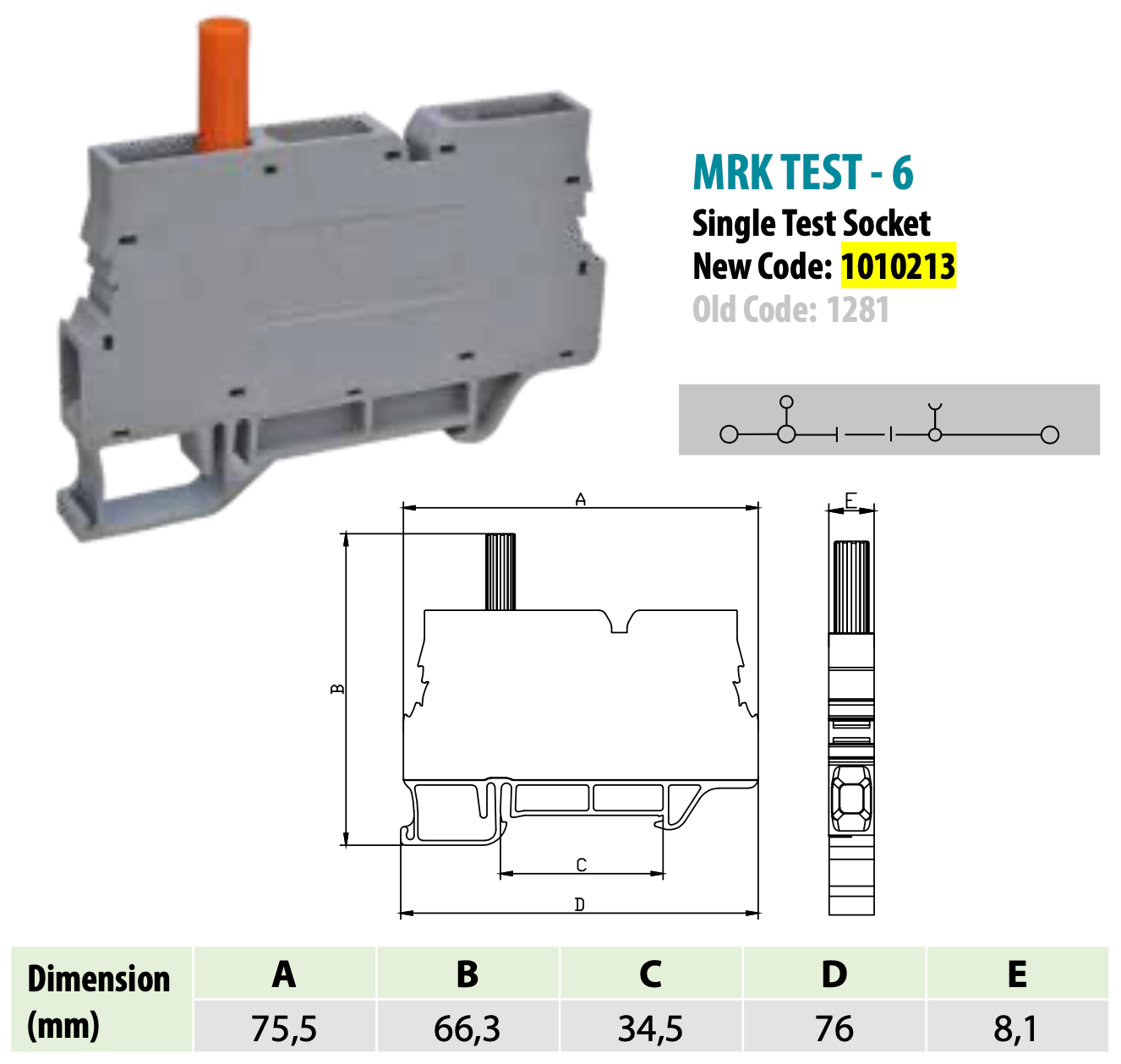

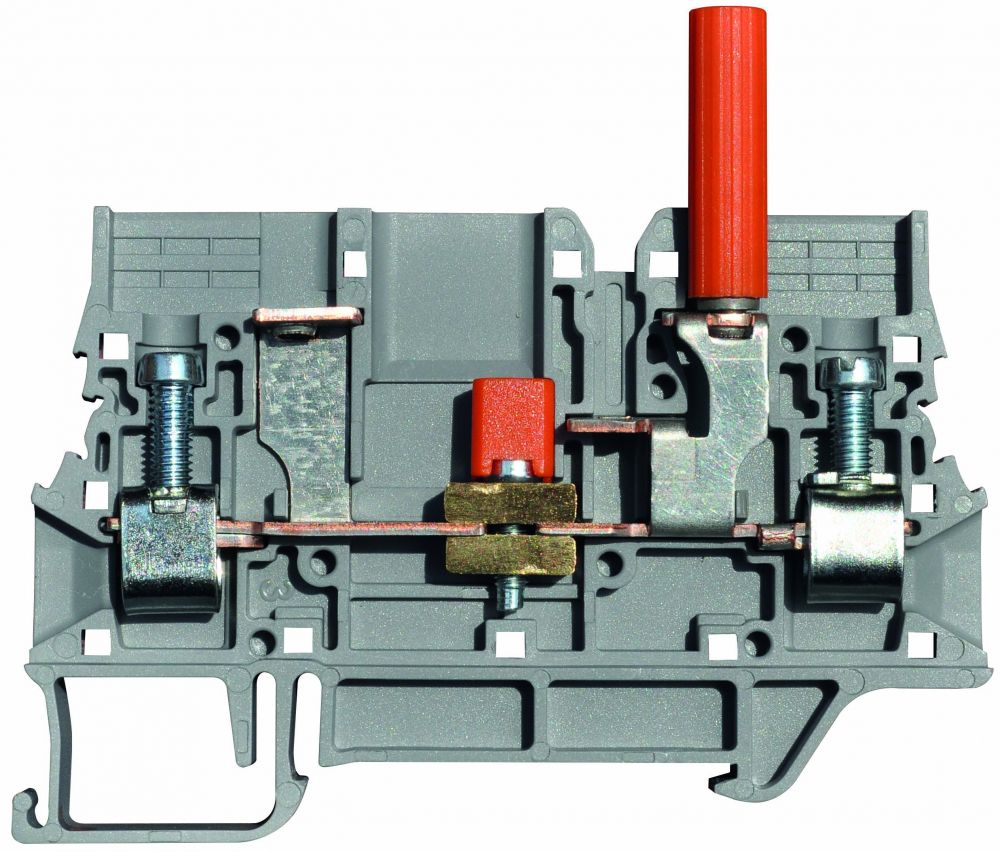

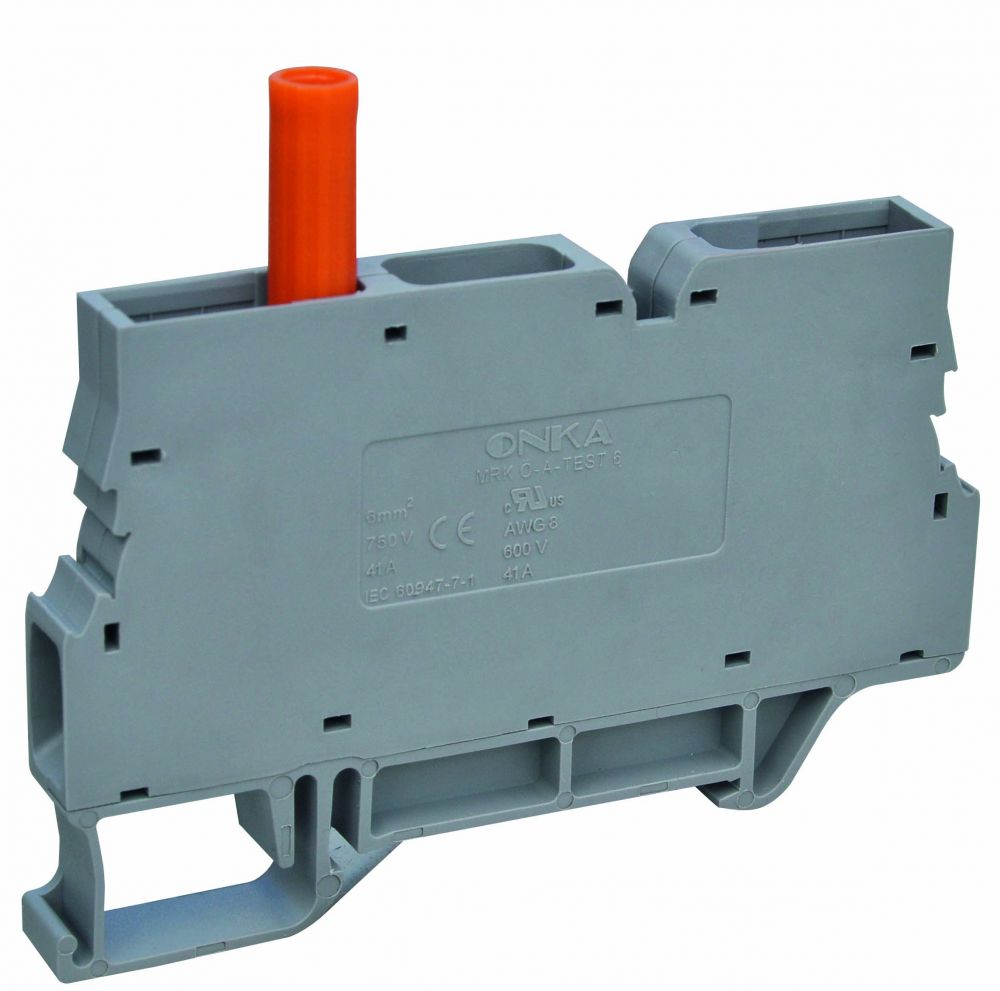

Measuring terminal block with test connector threaded busbar rail connector / Terminal for DIN rail 2-wire gray, ONKA, made in Turkey
Compact installation connectors of the rail from ONKA provide great possibilities for connecting any wires of various cross-sections. The transparent housing allows for easy inspection of the correct arrangement of wires. The original quick connectors from ONKA offer comfort during installation and 100% reliability of the connection.
Technical Parameters
Cross-section of the connected single-wire conductor up to: 6mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Contact / bridge material: CK45 Steel / copper
Torque: 0.8 Nm
Connection position: Side / Side
Cable strip length: 12mm
Type of electrical connection: Screw terminal
Rated voltage: 750V
Rated current: 41A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN rail mounting 35 mm
Standard: EN-60947-7-1
