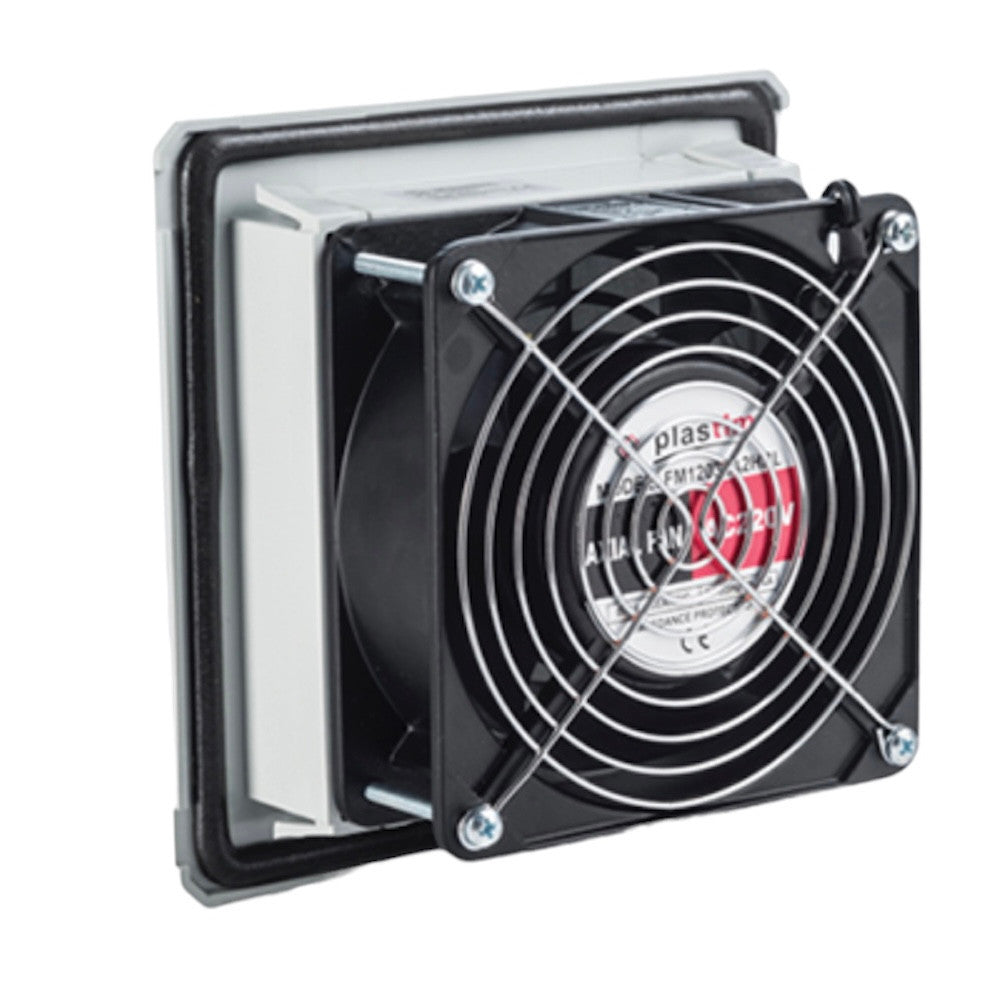

Fan with filter, 100 (140) m3/h, 160x160, 230V 50/60Hz IP54 PTF1500 Plastim
- Regular price
- 213,08 lei
- Regular price
-
- Sale price
- 213,08 lei
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

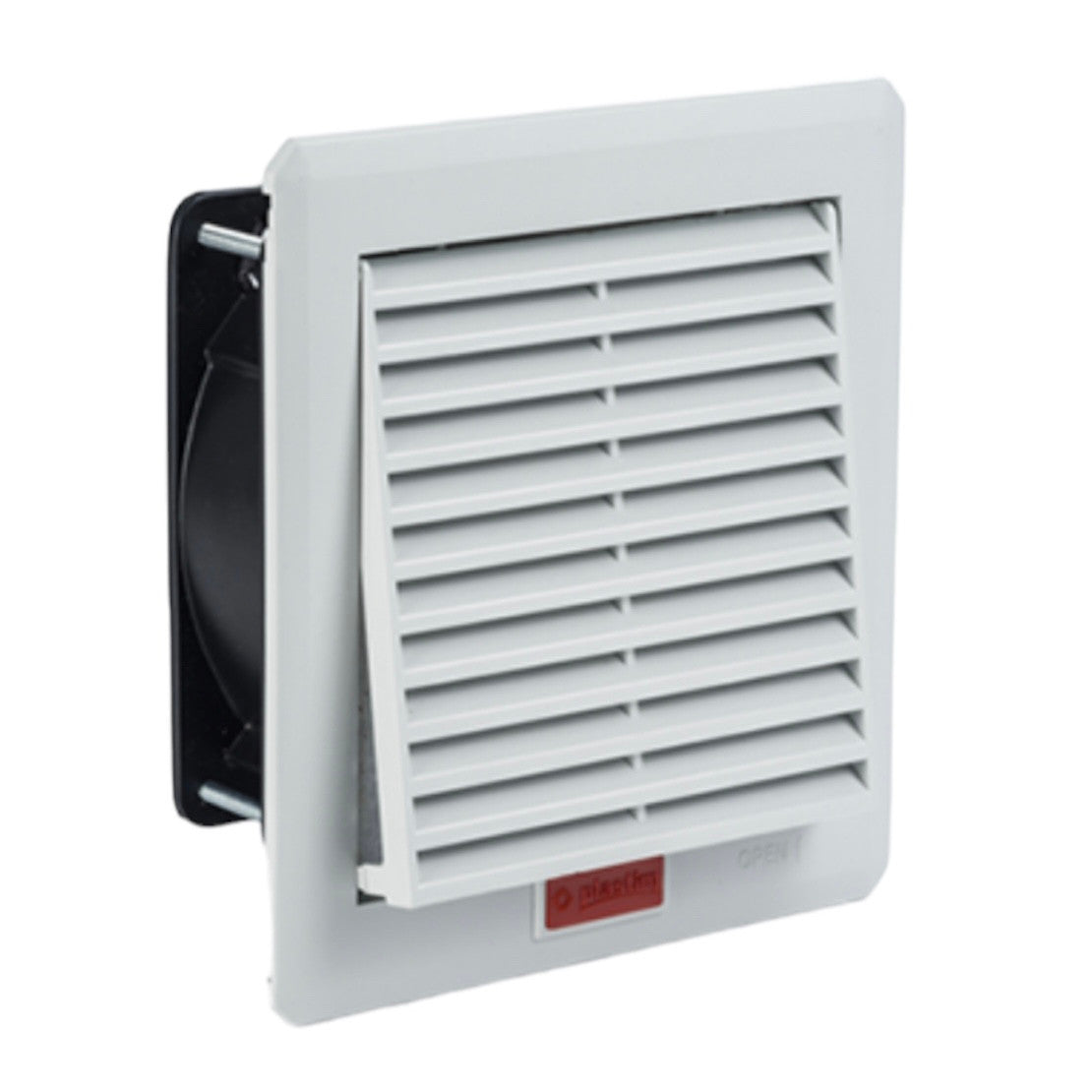

Ventilation grille with fan and filter, size 160x160 mm, for installation in electrical panel, automation cabinet, ATM, or gaming terminal. PTF1500, manufacturer Plastim (Türkiye)
Used for drawing in outside air into electrical enclosures, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Typically installed in the side walls of boxes to maintain IP.
- External dimensions: 160x160x69 mm
- Installation size: 125х125mm
- Volumetric flow: 100 (140) m3/h
- Noise level: 42 (46) dB(A)
- Bearing: Ball bearing
- Operating voltage: 220-230VAC, 50/60Hz
- Current consumption: 0.14(0.13) A
- Rated power: 26 (23) W
- Electrical connection: Lead wire
- Direction of flow: Outside to inside (can be changed)
- Operating temperature: -10/+70 °C
- Degree of protection: IP54
- Plastic material: UL94 V0 ABS Flame retardant
- Sealing: Polyurethane seal
- Color: RAL 7035 (RAL 7032 on request)
- Weight: 0.68 kg
- Mounting: Fast Clip-on
To ensure automatic air exchange and maintain temperature using this fan, you will need either a simple bimetal thermostat or a more complex temperature controller, both of which can be purchased on our website.
