Roof fan, switchgear, 560m3/h, 230VAC, 364x364x107mm, IP54, PTS5500

In stock - 10 items available
SKU: PTS5500
Common price €334,95 including VAT

Notify me when it's back in stock

{{product_with_variant}}
Email
SMS

Please indicate that you have read and agree to the Privacy Policy before submitting your data.

We will notify you when this product is available again. Your email address will not be shared with anyone else.

Online card payment - after completing the order, you will be redirected to the payment gateway, payment confirmation will be sent to your email

COD - you pay the payment according to the payment order to the driver of the transport company

By bank transfer- you will receive an advance invoice to your e-mail no later than the next working day, on which you will find the account number that you will enter during payment.

On invoice - this payment option is available to partners who have signed a framework agreement with our company.

​If you would like to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty and meets all EU requirements.

In the event of a complaint, no fee is charged for returning the goods.

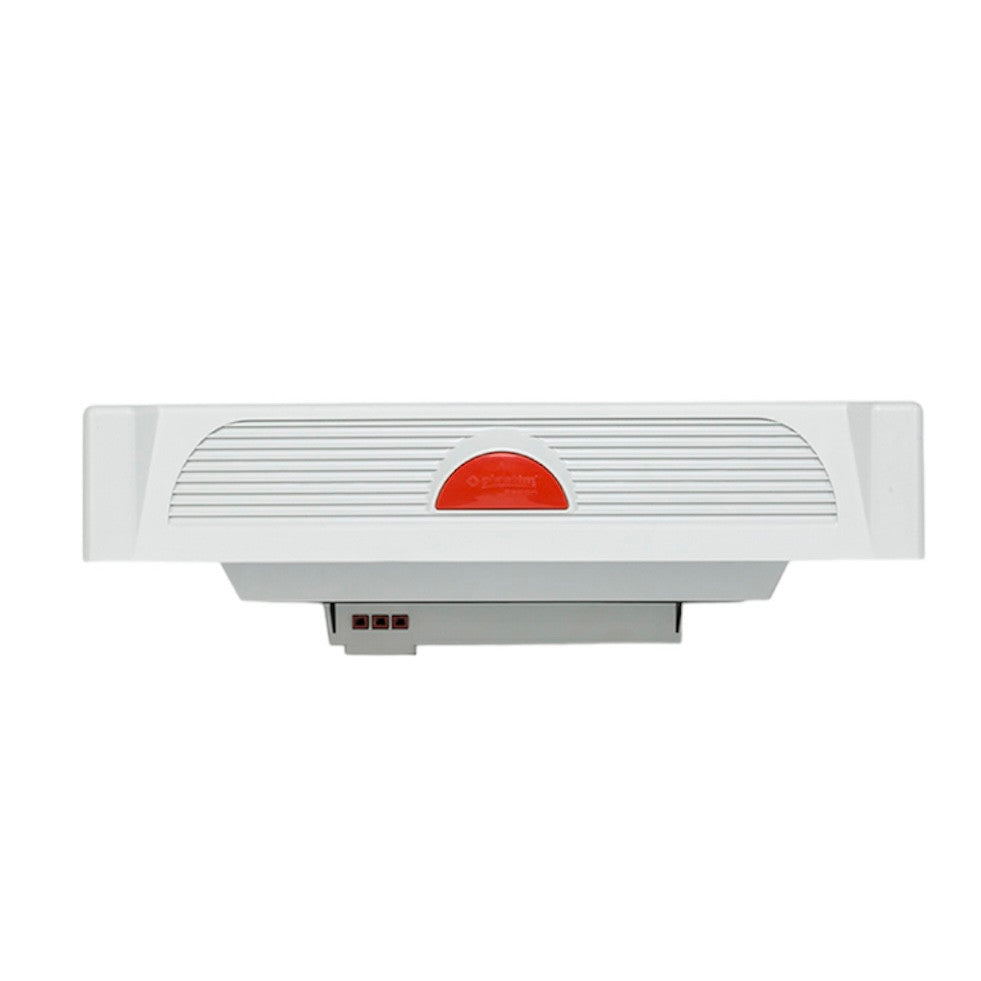

Fan in case for installation on the roof of the switchboard, PTS5500, PLASTIM (Türkiye)

This fan is intended for use in a microclimate system in a distribution board or automation panel and is usually used with a PTVT or PTHVT thermostat. It is installed on the roof of the cabinet, which allows for the most efficient removal of excess hot air from the volume of the cabinet.

Although the fans have the same overall dimensions, they differ in the volume of air emitted and the noise level.

  • External dimensions: 364x364x107 mm
  • Installation size: 178x178mm
  • Volume flow: 560 m3/h
  • Noise level: 62 (64) dB(A)
  • Bearing: Ball bearing
  • Service life: 50000 h
  • Operating voltage: 220-230VAC, 50/60Hz
  • Current consumption: 0.26/0.34 A
  • Rated power: 58/75 W
  • Electrical connection: 3-pole terminal 2.5 mm2
  • Flow direction: The air flow is directed from the inside to the outside of the cabinet
  • Operating temperature: -10/+70 °C
  • Degree of protection: IP54
  • Plastic material: UL94 V0 ABS Flame retardant
  • Seal: Polyurethane seal
  • Color: RAL 7035
  • Weight: 3.16 kg
  • Mounting: Fast Clip-on

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website:

Link to the thermostat - https://www.pelek.cz/product-page/Termostat-NO-sp%C3%ADnac-0-60-DIN-PTVT
Link to drivers - https://www.pelek.cz/regul-tory-teploty-a-senzory
