Fan with filter, 100 (140) m3/h 160x160, 230V 50/60Hz IP54 PTF1500T Plastim

Only 1 left
SKU: PTF1500T
Common price €46,95 including VAT

Notify me when it's back in stock

{{product_with_variant}}
Email
SMS

Please indicate that you have read and agree to the Privacy Policy before submitting your data.

We will notify you when this product is available again. Your email address will not be shared with anyone else.

Online card payment - after completing the order, you will be redirected to the payment gateway, payment confirmation will be sent to your email

COD - you pay the payment according to the payment order to the driver of the transport company

By bank transfer- you will receive an advance invoice to your e-mail no later than the next working day, on which you will find the account number that you will enter during payment.

On invoice - this payment option is available to partners who have signed a framework agreement with our company.

​If you would like to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty and meets all EU requirements.

In the event of a complaint, no fee is charged for returning the goods.

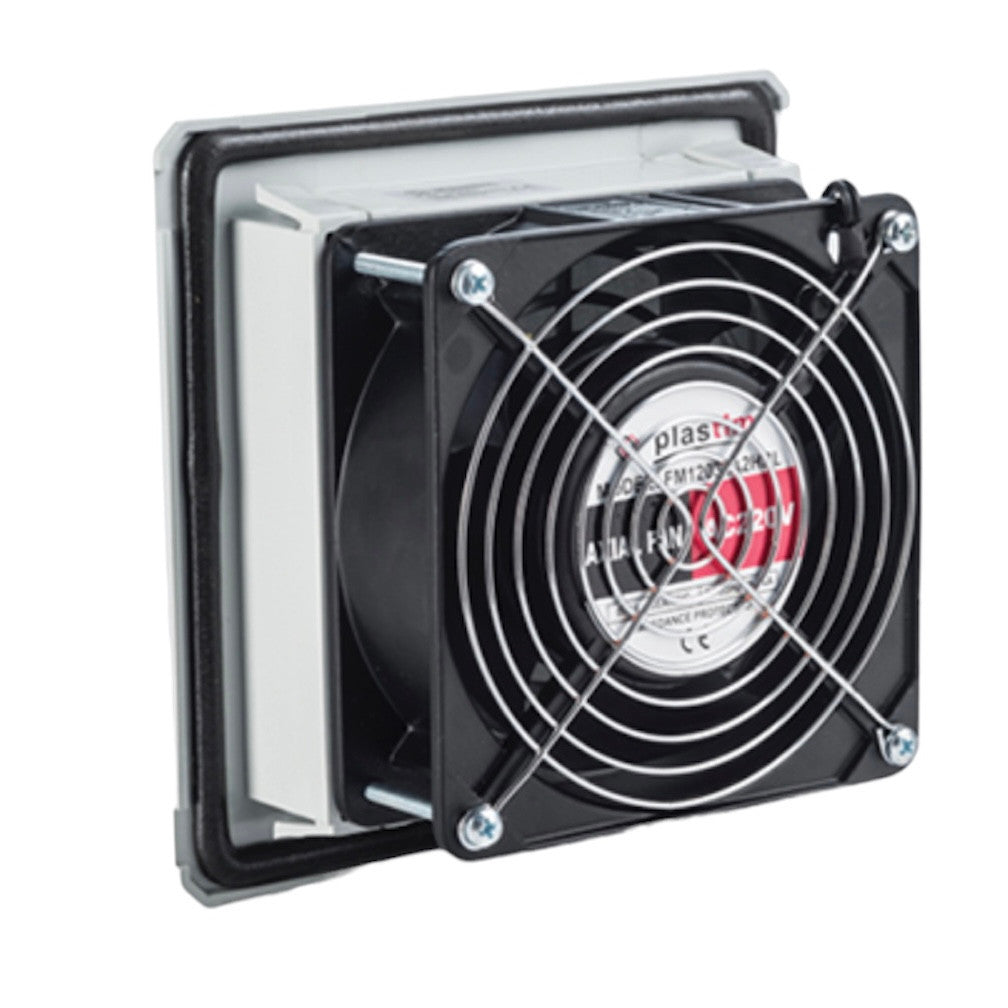

Ventilation grill with fan and filter, size 160x160 mm, for installation in an electrical panel, automation cabinet, ATM or gaming terminal. PTF1500T, manufactured by Plastim (Türkiye)

It is used for sucking outdoor air into electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. As a rule, to preserve IP, they are installed in the side walls of the boxes.

  • External dimensions: 160x160x69 mm
  • Installation size: 125х125mm
  • Volume flow: 100 (140) m3/h
  • Noise level: 42 (46) dB(A)
  • Bearing: Ball bearing
  • Operating voltage: 220-230VAC, 50/60Hz
  • Current consumption: 0.14(0.13) A
  • Rated power: 26 (23) W
  • Electrical connection: 3-pole terminal 2.5 mm2
  • Flow direction: Outside in (can be changed)
  • Operating temperature: -10/+70 °C
  • Degree of protection: IP54
  • Plastic material: UL94 V0 ABS Flame retardant
  • Seal: Polyurethane seal
  • Color: RAL 7035 (RAL 7032 on request)
  • Weight: 0.68 kg
  • Mounting: Fast Clip-on

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website:

Link to the thermostat - https://www.pelek.cz/product-page/Termostat-NO-sp%C3%ADnac-0-60-DIN-PTVT
Link to drivers - https://www.pelek.cz/regul-tory-teploty-a-senzory
