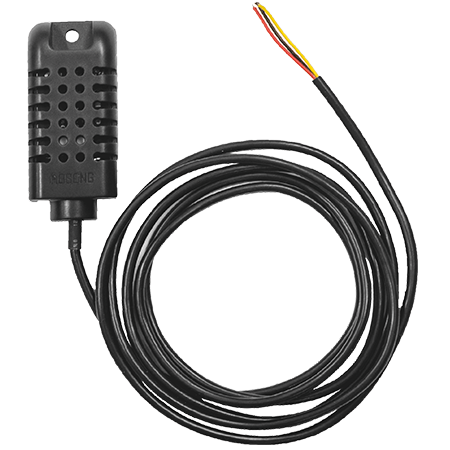

Probe for measuring air temperature and humidity
- Regular price
- €37,55
- Regular price
-
- Sale price
- €37,55
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
|
Relay
for temperature and humidity control. Humidity and temperature controller with separate
outputs and hysteresis, dimensions 72x36x100 mm, flush mounting. HT-310 TENSE.
Main
characteristics: Type
sensor used for humidity and temperature controller - one common - NT-310; Range
measured temperature: -19.9 °C..+80.0 °C; measurement step 1 °C; Range
measured humidity: 5 %....95 %; measurement step 1 %; Principle
control - ON-OFF; 2
output contact groups: switching control contact "°C OUT", 2A
resistive load for temperature and normally open "%RH OUT" 2A
resistive load for humidity 2
operating modes of temperature control "Cooling" and "Heating"
("COOLING" and "HEATING") 2
operating modes of humidity control "Dehumidification"
"Humidification"; Separate
setting hysteresis parameters for temperature and humidity control; Choice between
absolute, relative temperature value or sensor error for ALARM contact Option
setting the delay for turning ON OUT for COOLING mode (used for
compressors); Option to set a fixed offset for temperature or humidity (when
change in the length of the sensor wire); Protection
with the password of the parameters set in the temperature controller; Energy
independent memory (EEPROM) for data storage; Easy
disconnection / connection to the controlled device - connection is made using
quick connectors. Extended
operating voltage range - 100...240V, 50-60 Hz
This
the controller can also be used as a hygrostat, humidity meter, moisture meter or
hygrometer (hygrometer, hygrometer), thermostat, thermal relay or in other words
relay for measuring humidity and air temperature!
Attention!!!
When
when connecting the temperature sensor, observe polarity - failure to comply with this
rules may lead to incorrect operation of the temperature controller and damage to the sensor. When
when connecting the controller to power, use a 250mA 250V fuse, use
cable with the appropriate cross-section, follow electrical safety rules. For
signal contacts use shielded twisted pair with grounded shielding.
Place this cable in locations... Protect from strong electromagnetic
fields, contactors, or power cables. |
Warning, important! Although this thermostat is designed for measuring temperatures below -20 degrees and above 55 degrees, the device itself installed where the temperature ranges from -20...+55 degrees. Otherwise, the plastic casing may deform and the thermostat itself may fail.
