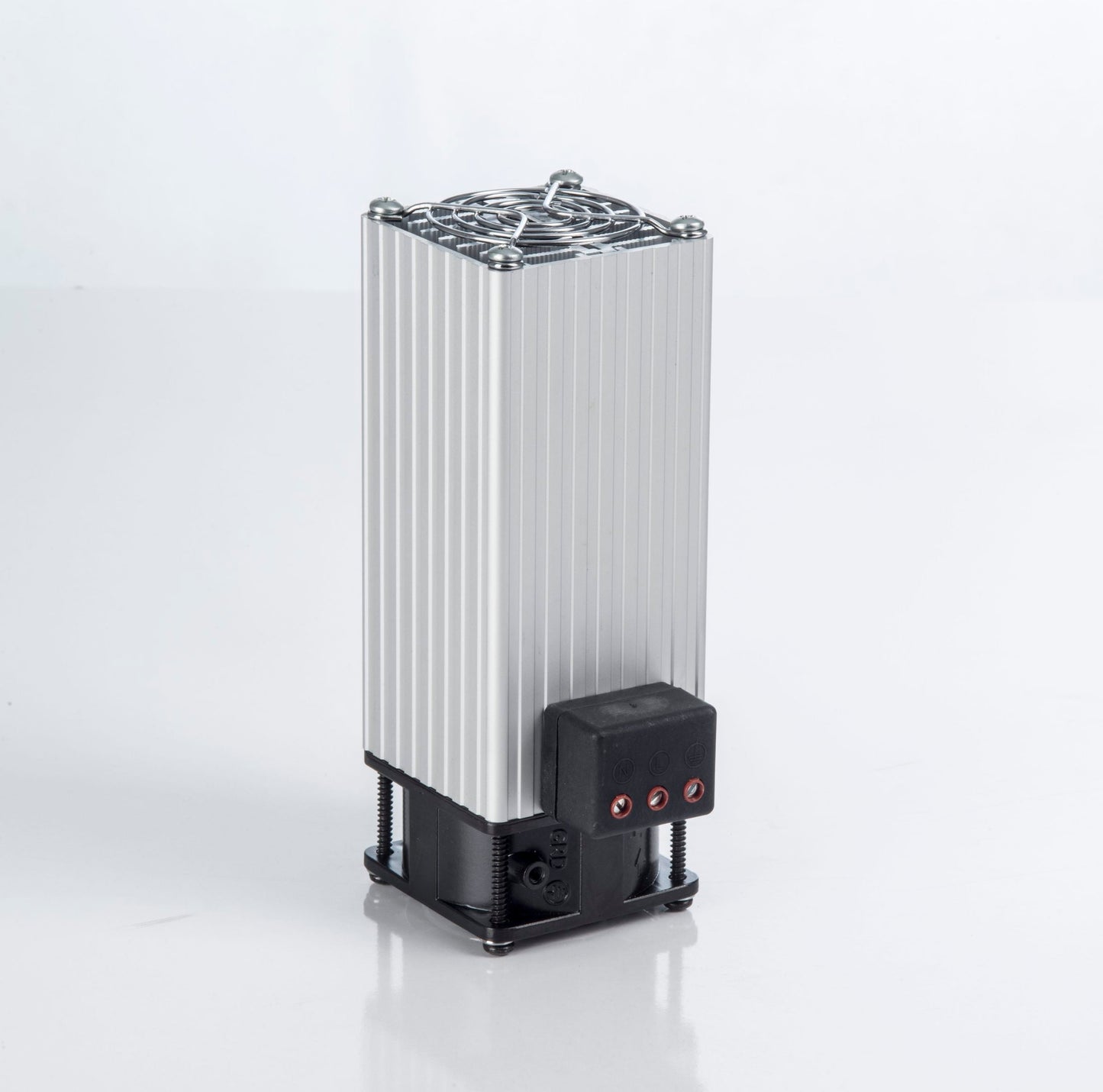

Electric (PTC Heating Element, Posistor Heater) fan-mounted cabinet heater, with anodized aluminum heatsink and overcurrent protection, for DIN rail installation, 100 watts, 220/230 volts AC, PFHT100, Plastim - Made in Turkey.
- Heating power: 100W
- Operating voltage: 220/230V AC, 50/60Hz
- Maximum current: 4A
- Type of heating element: Self-regulating PTC resistor
- Axial fan: 60x60x30mm 16m3/h
- Overcurrent protection: Electronic thermal overload relay
- Electrical connection: 3-pole terminal N-L-E
- Class ochrany IEC: Class II
- Degree of protection: IP20
- Operating temperature: -25 / +70 °C
Storage temperature: -25 / +70 °C
Radiator: Aluminum profile, anodized
Mounting: on a 35mm DIN rail
Mounting position: Best efficiency in vertical position
External dimensions: 170x89x60mm
Weight: 0.70 kg
Heaters are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals and other electronic equipment. Previously, light bulbs were used for these purposes - but it is clear that this method does not ensure compliance with modern strict requirements for electrical equipment and electronics. Currently, almost all manufacturers are switching to PTC heaters, which not only provide heating, but also guarantee safety and service life.
All heaters are equipped with electronic protection against overheating of the surface, which provides an additional guarantee of safe operation.
Due to the high requirements for cabinet heaters, Plastim paid maximum attention to the selection of component suppliers. For example, the supplier of PTC heating elements is the same as that of Schneider Electric, and the terminal block for the electrical connection of all parts is produced by the Italian company KORNER by special order. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit any odors and therefore does not emit any harmful carcinogenic substances into the atmosphere. Agree that this approach to the selection of suppliers favorably distinguishes high-quality Plastim heaters from cheap Chinese analogues.
To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller. You can purchase both devices on our website:
