Vendor: TENSE

Modbus interface converter RS485 to RS232 protocol converter to PC via USB

Barcode: USB-CON
€46,91
€46,91
27 in stock
  • Description
  • Instructions
  • Payment methods
  • Warranty

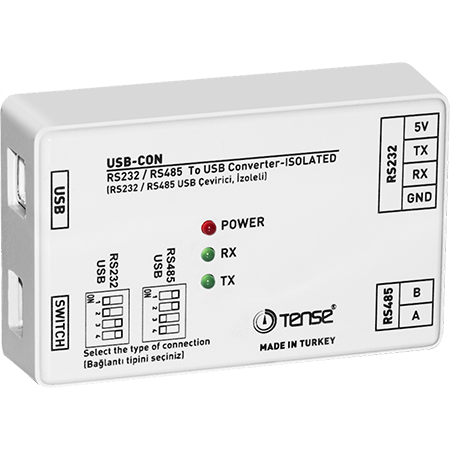

Converter the RS485/RS232 to USB protocol. Protocol converter/gateway for connecting devices with an RS (MODBUS) port to a computer via USB port (sb connector). USB-CON. TENSE Turkey

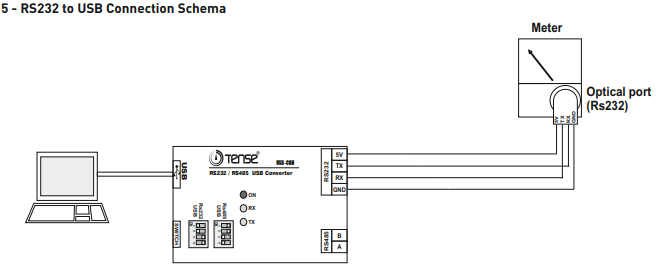

Converter the USB-CON protocol manufactured by the Turkish company TENSE is a compact gateway for connecting any devices with an RS485/RS232 (MODBUS) port to a computer via USB port. You can connect devices such as electricity meters, multimeters, network analyzers and other devices.

Gateway RS485 RS232 / USB does not require separate power supply (the converter is powered via USB port) and has the following parameters:

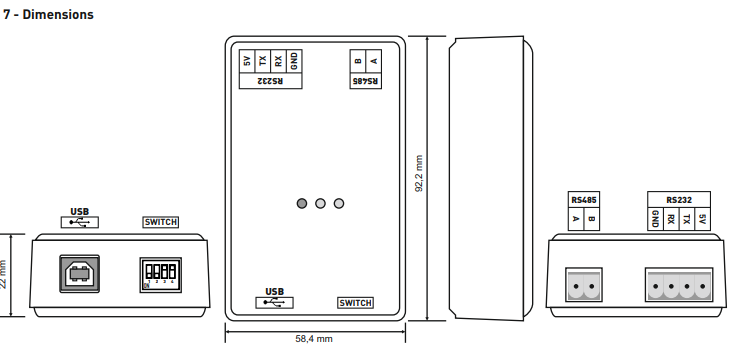

small dimensions of the protocol converter - 9 cm x 6 cm x 3 cm;

fast connection via terminal blocks;

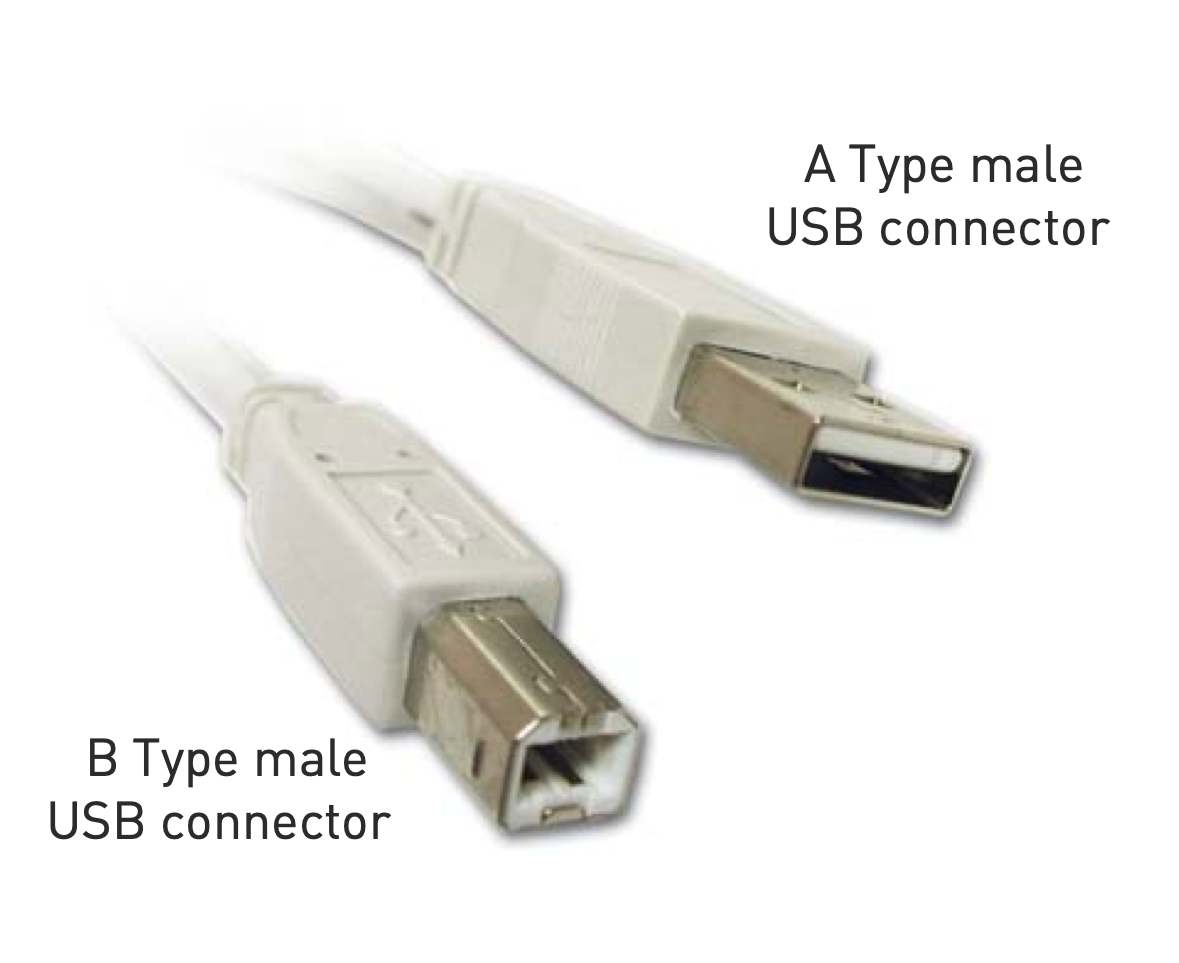

set converter includes USB cable (1.2 m);

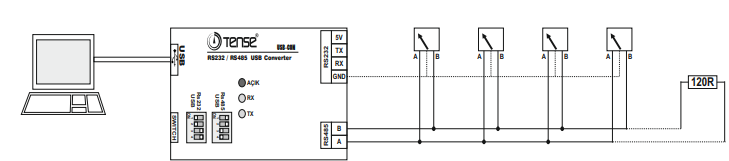

connection for 256 devices with RS485/ModBus;

light power/data exchange indication;

high data exchange rate - up to 203400 bit/s;

galvanically separate outputs/inputs

wide operating temperature range: -20°C...+55°C (in most cases does not require additional heating or cooling);

free software for gateway configuration.
