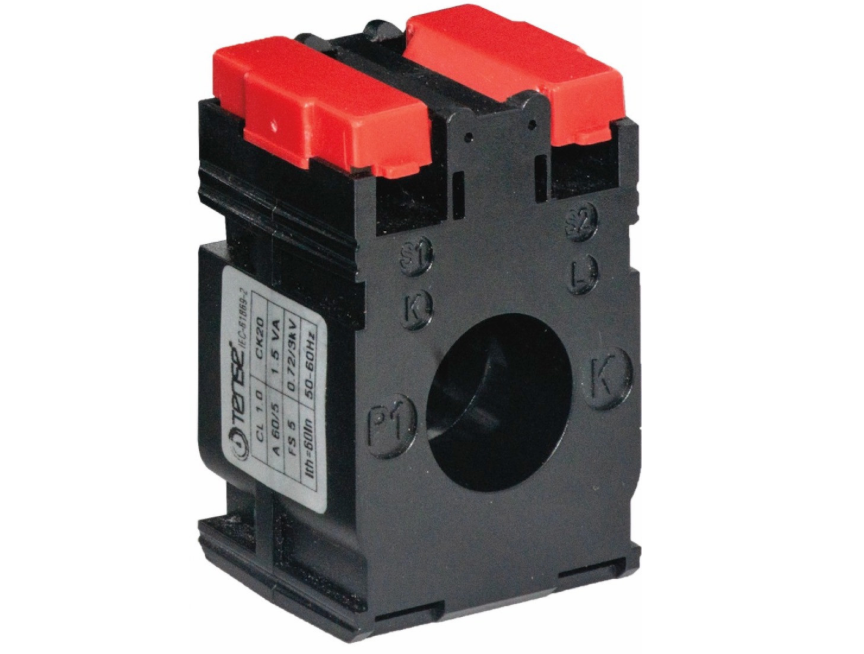

CK20 - Measuring current transformers plug-in TENSE 60/5 75/5 100/5
- Regular price
- €12,98
- Regular price
-
- Sale price
- €12,98
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty
|
Measuring
current transformer for ammeter/meter/multimeter series CK20
Technical
specifications
Coefficient:
60/5A Load:
1VA Class
accuracy: 1 Terminal block:
Non-removable cover; for conductors with a large cross-section; Made of brass for
greater safety Case Non-flammable
self-extinguishing ABS Installation:
DIN rail (KK0003) Round
wire Ø 20 mm t-resistance
against short-circuit current Ith = 60 * In t-resistance
against constant current Id = 1.2*In Ambient
temperature (operating) -25C ~ +85C Rated
frequency 50 Hz ... 60 Hz Limitations
impulse current FS 5 Test
voltage 3 kV for 1 minute Standards:
IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869-2 |
Each current transformer undergoes individual test at the manufacturer's factory, the results of which are recorded in the test of the protocol and attached to the transformer.
Download on
Technical information on current transformers (996 kB) - to be sent on request
