Submersible pump control relay, level gauge for tank well borehole
- Regular price
- €186,57
- Regular price
-
- Sale price
- €186,57
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty
|
Control
and protection of three-phase submersible pump, maximum current 60 A, 260 V–470 V
AC, Tense. Electrodes
(liquid level sensors) are not included in the delivery.
Monitoring
maximum and minimum current and voltage, water presence monitoring,
star/delta starting, inrush current factor, time setting
starting, timers for delay on/off, restart timer,
inputs for three level sensors and a float switch, asymmetry monitoring and
phase sequence, 4x20 character LCD display, dry run protection and automatic
cyclic operation.
This
The regulator is designed for automating the protection and control of submersible drilling and other
water pumps. The main characteristic features of this controller are:
-
Large, easy-to-read display for information and operating parameter settings
-
Intuitive interface
-
Buttons for manual pump control
-
Monitoring maximum and minimum voltage between phases (with adjustable
time and rated values)
-
Monitoring maximum and minimum current (with adjustable time and
with rated values)
-
Setting the time interval and coefficient for overload due to starting current
- Not
neutral conductor must be connected
-
Phase sequence and phase asymmetry monitoring (with adjustable time and
with rated values)
-

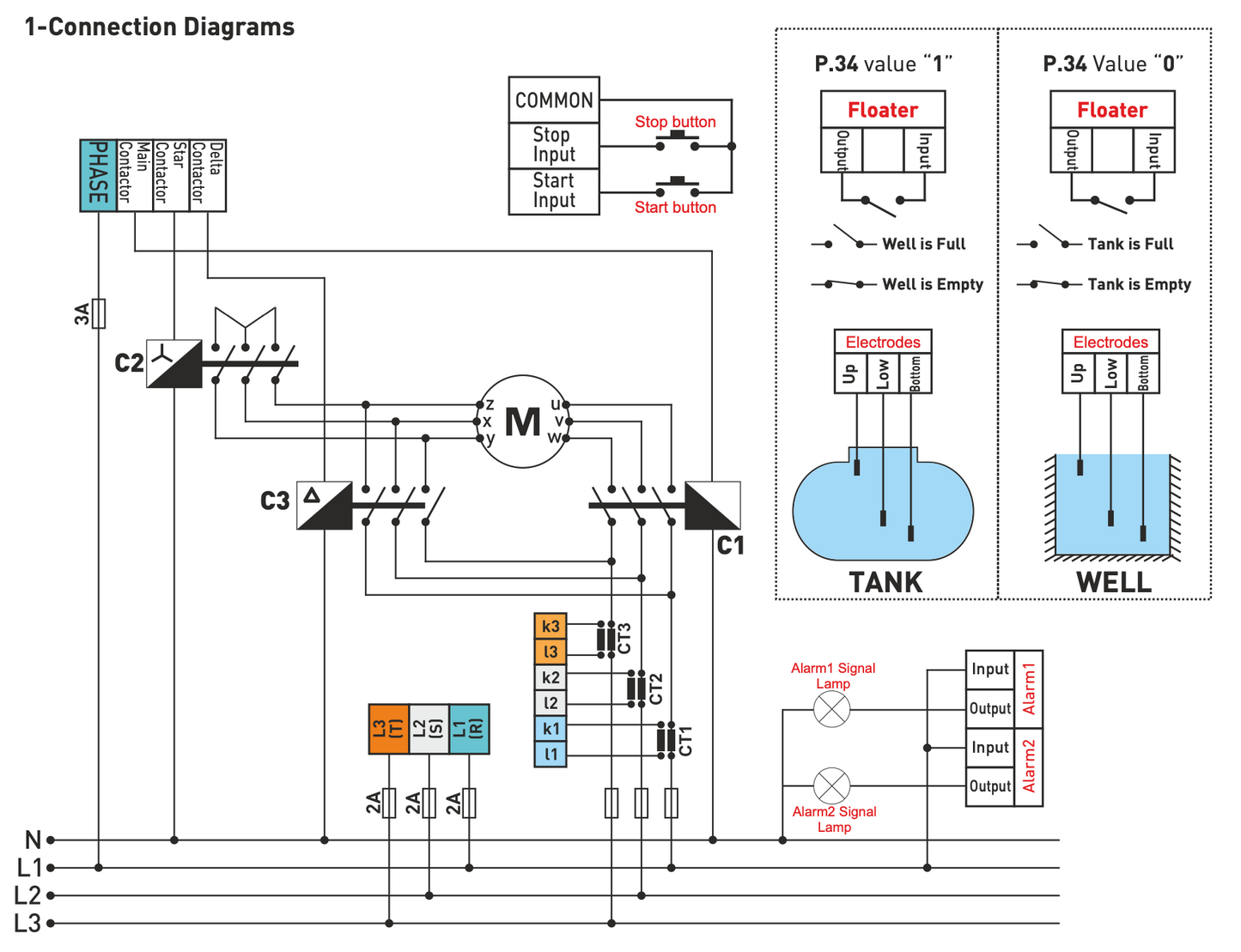

Built-in star-delta starting relay to reduce starting currents
-
Adjustable power factor values for dry run protection, even when
do not use water level sensors
-
Adjustable sensor sensitivity based on water parameters
-
Adjustable response time for level sensors
-
Pulse power supply for level sensors – significantly extends sensor lifespan
-
Setting the pump activation frequency and saving the operating time even during a power outage
product
-
Error log storage in non-volatile memory
Technical
parameters:
Operating
voltage - 120 V–290 V AC
Operating
frequency - 50/60 Hz
Operating
temperature: 0 °C - 55 °C
Consumption
power consumption - <4 VA Range
operating current - 1 A–60 A Dimensions
- 139 x 139 mm Connection type
– Connector Weight
- 0.6 kg Output
contact - 5 A, 250 VA Indicator
– LCD, LED |
